This document will enables the FitnessForce Account Managers to install the Access control application for the club using Appointment plus (ZK7500). Also, you need to install an APP+ application on a different computer, Where you do not have Essl X990 and lcock application installed.
1. Check System requirements:
Mandate Computer configuration requirement for better functionality of Access Control software are as below:
a. Processor: Minimum: Intel Core i3 @ 3.30GHz. Recommended: Intel Core i5 or better.
b. Ram: Minimum: 4GB. Recommended : 8GB.
c. Operating system:

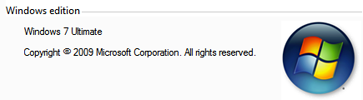

Windows 7 Ultimate / Professional 32-bit OS with Service pack 1: If the operating system is Windows 7 then check whether the service pack 1 is installed or not on the client system if not then copy the files from google drive and install.
Link: https://drive.google.com/drive/folders/1wvCMSAqq94e7TTTIw-dl-gU5LTcji9AS
For Windows 7 32 bit - Windows6.1-KB3102810-x86
For Windows 7 64 bit - Windows6.1-KB3102810-x64
Windows 10: If the operating system is Windows 10 update the OS to the latest version & the Regional/MS access language should be English.
d. Hard Disk: Minimum: 50 GB, Recommended: 100 GB, Disk Format: NTFS Format Recommended

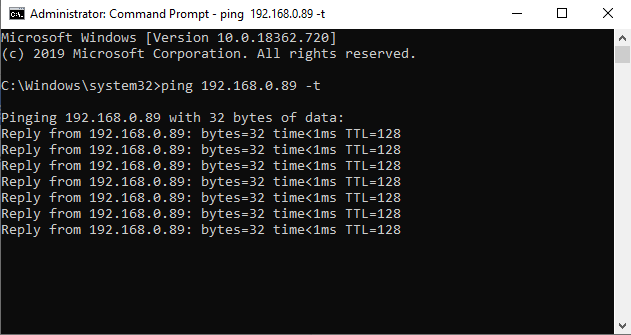

e. Network: There should not be any network drop in the local area network between the bio-metric device & computer.

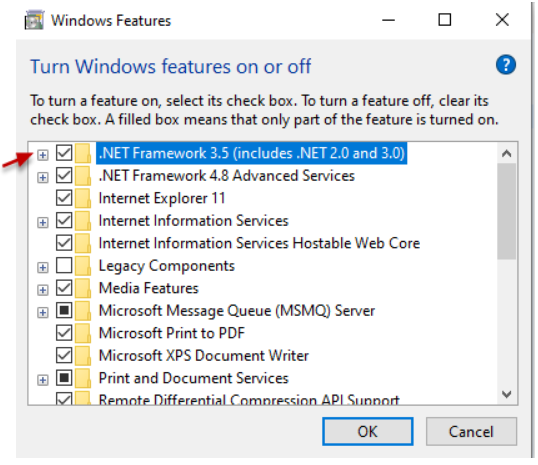

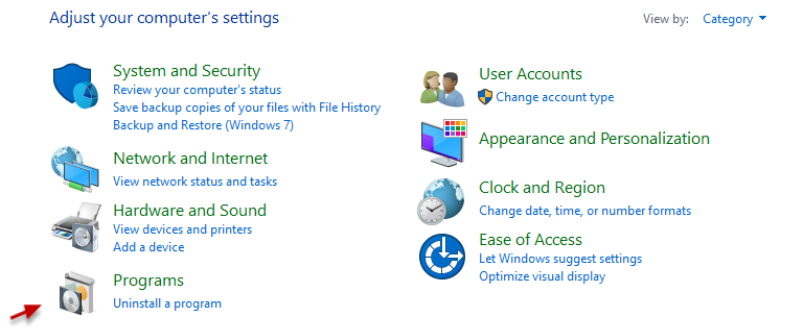

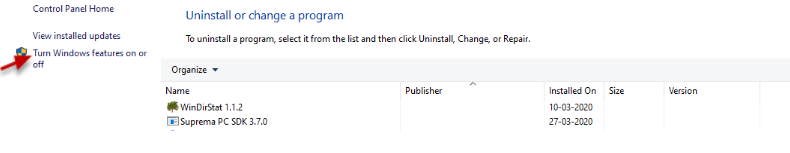

f. Check the .NET Framework 4.6.1 is installed or not on the client system if not then copy the files from google drive and install. To check the .NET Framework version in the Start Menu search for Control panel then click on Uninstall a Program & then Click on Turn Windows feature on or off.
2. Prerequisite on the site before installation:
a. The biometric machine should be mounted only on a firm structure.
b. LAN connectivity has to be available near the place where the device has to be mounted. LAN Cable ( Cat 6 wire) is required for the connection between Biometric machines to PC ( through the switch ). Wiring from Access Control machine to Door lock and Exit Switch button can be done by using CAT 6 wire threads.
c. Powerpoint near the place where the device has to be mounted. Any other component required would be provided or payable by the customer.
d. An Electrician / IT person is required for connection of the wiring and door lock.
3. Installation steps:

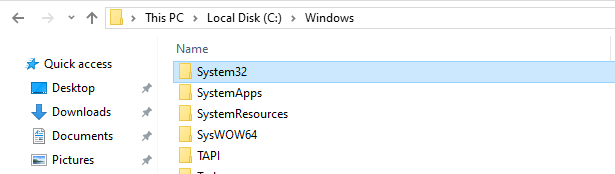

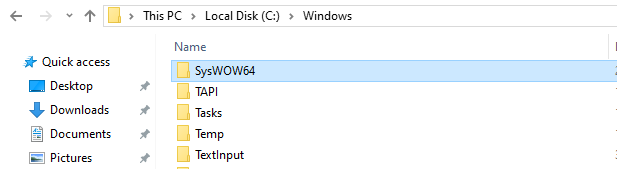

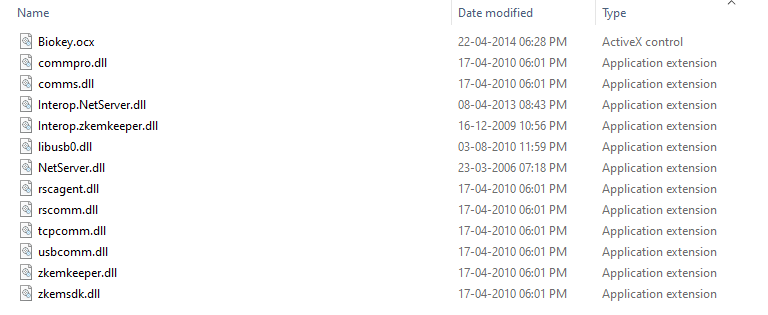

a. Copy DLL files from the DLL folder & paste it in the System32 folder for 32 bit OS System and paste it in the SYSWOW64 folder for 64 bit OS System.

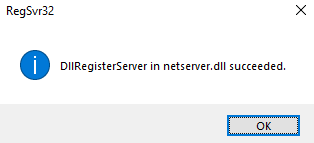

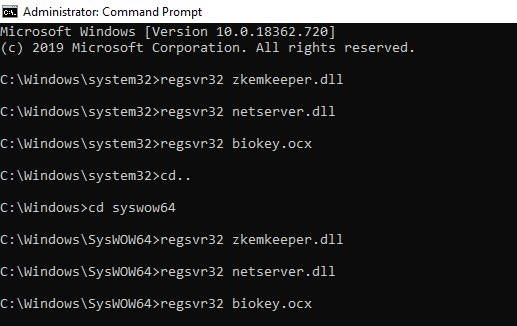

b. Register from CMD as Administrator (in 32-bit system & Syswow in 64 bit System) regsvr32 zkemkeeper.dll, netserver.dll & Biokey.ocx

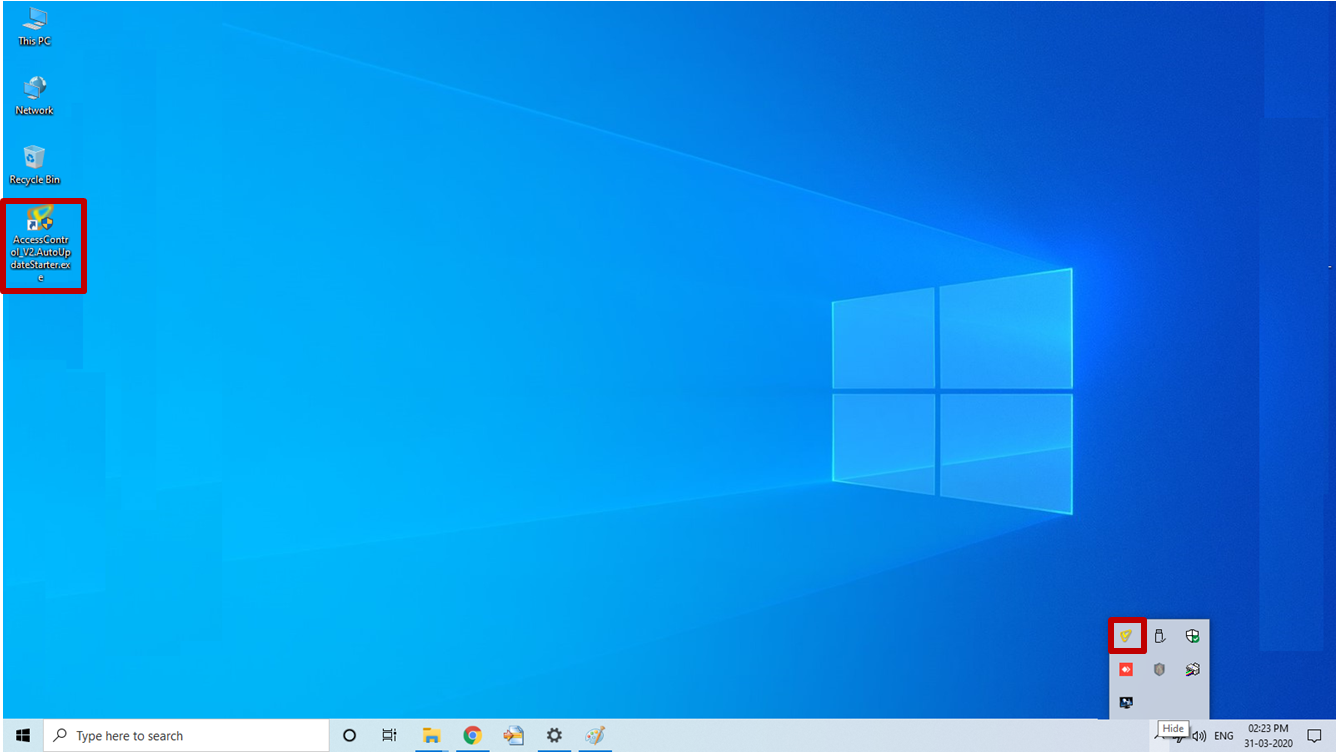

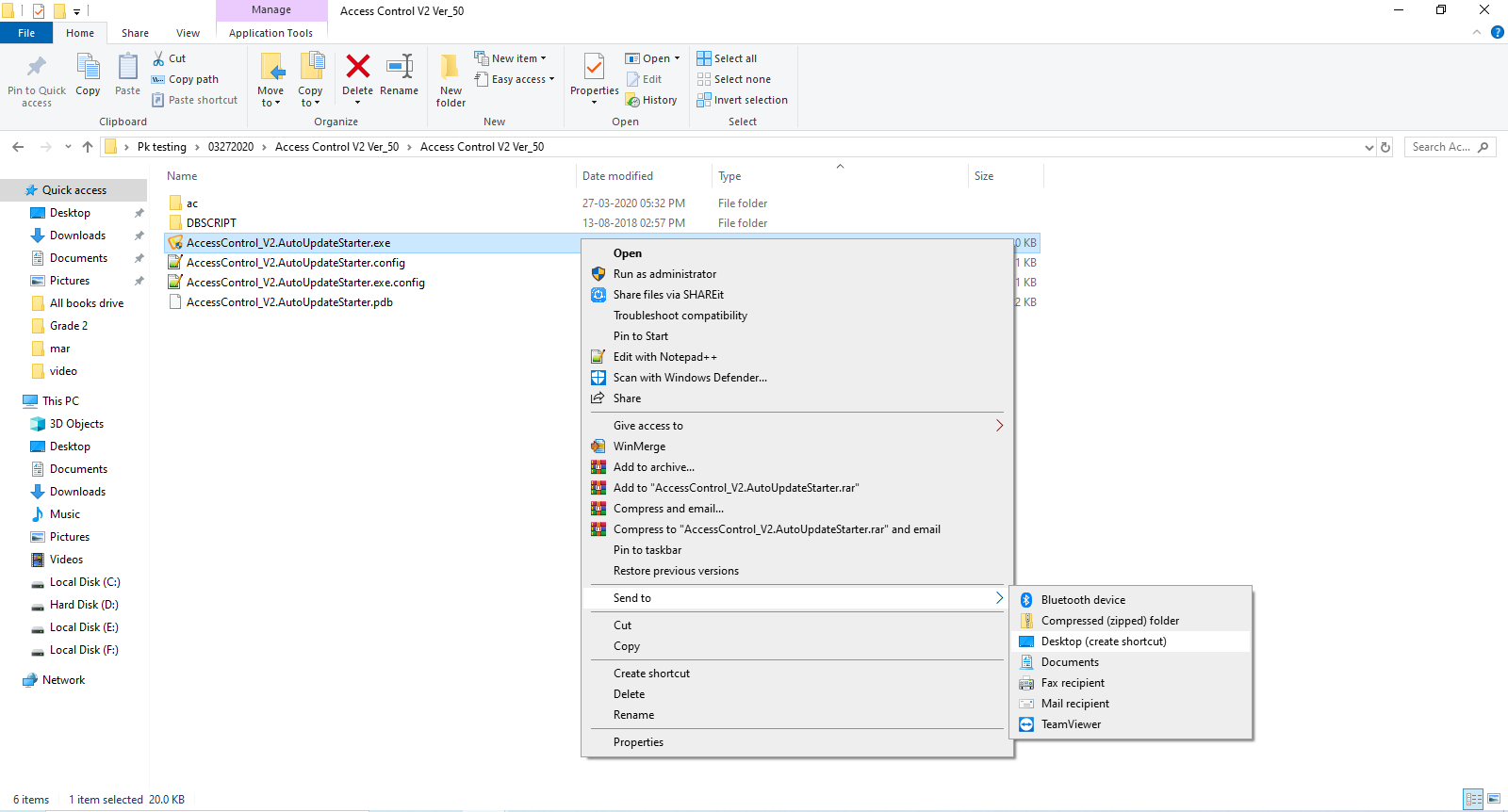

c. Copy Access Control application & paste it on the client computer. Make the shortcut of the application on the desktop.
d. You can double click the left button of your mouse on the FitnessForce application shortcut to start the application.

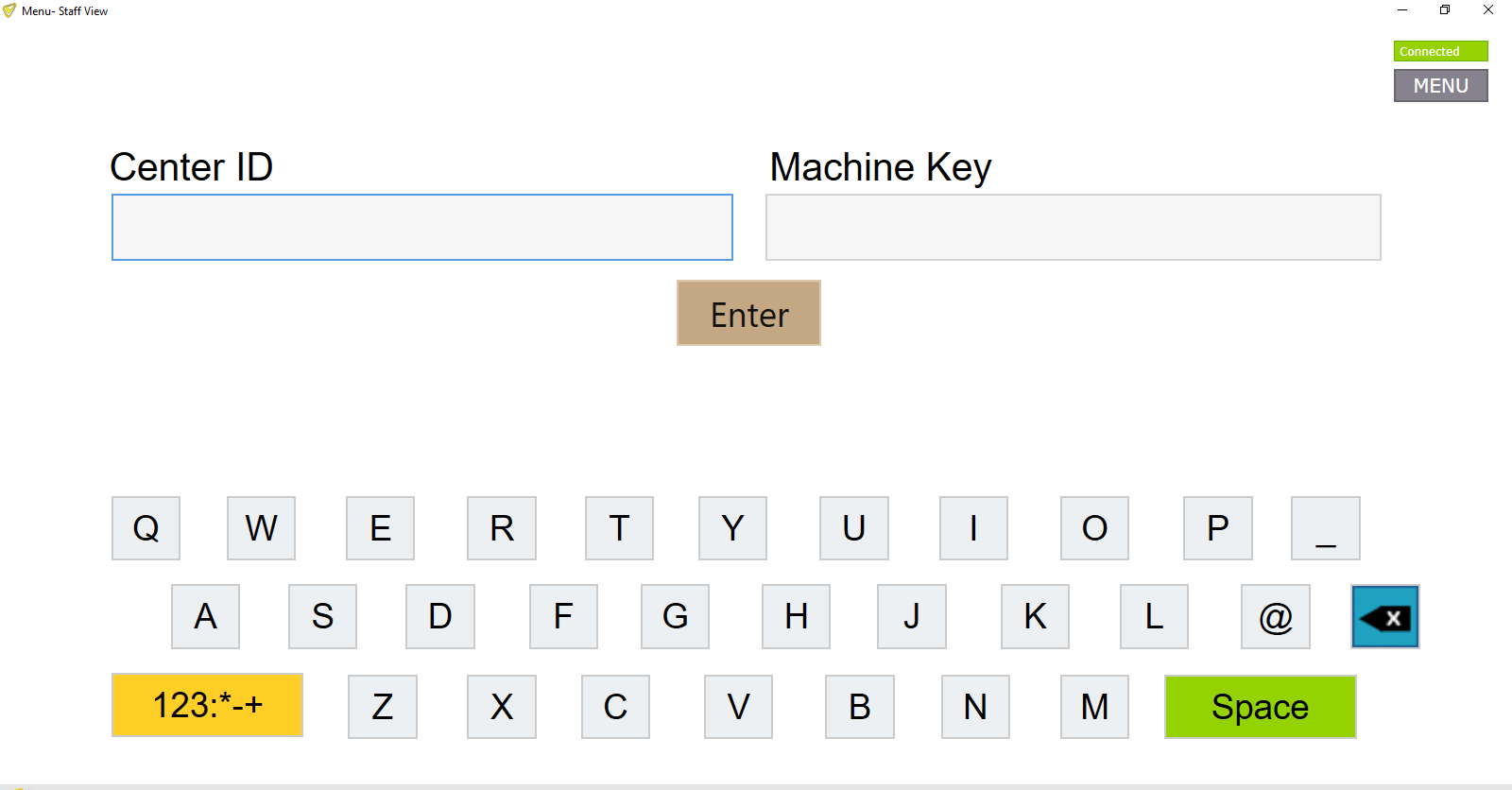

e. Enter the center ID & Machine key generated from FitnessForce software.
h. The FitnessForce access control application is installed successfully. You can start enrolling the staff & members.

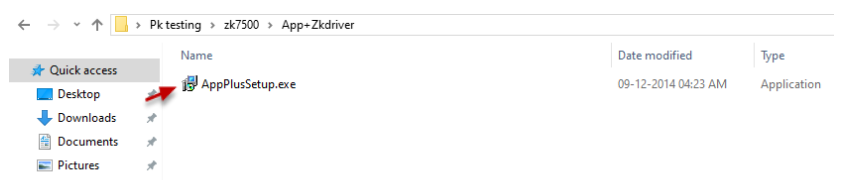

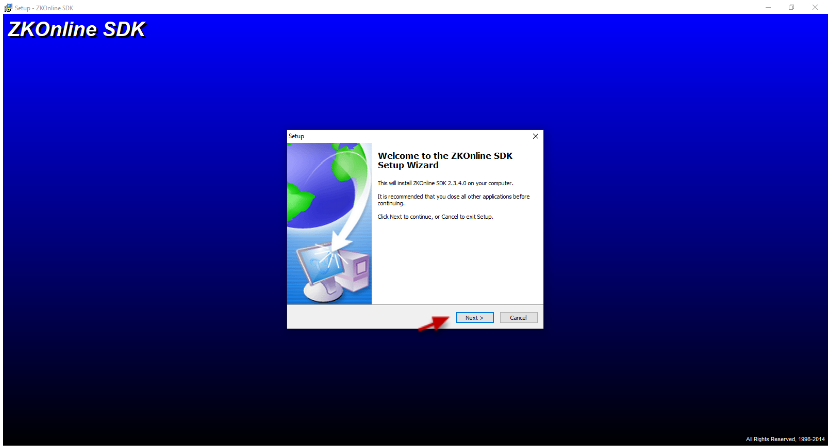

Note: For Appt+ device download, extract & install all the zk7500.zip from google drive.
https://drive.google.com/drive/folders/1wvCMSAqq94e7TTTIw-dl-gU5LTcji9AS
FAQ's
1. Where do I find all the files required for installation?
Ans: Please refer to this link to get all the Access Control related files.
https://drive.google.com/drive/folders/1wvCMSAqq94e7TTTIw-dl-gU5LTcji9AS
2. How do I make Machine Key?
Ans: Refer to How to make machine key
