This document will enable the FitnessForce Account Managers to install the Access control application for the club using PVM.
1. Check System requirements:
Mandate Computer configuration requirement for better functionality of Access Control software are as below:
a. Processor: Minimum: Intel Core i3 @ 3.30GHz. Recommended: Intel Core i5 or better.
b. Ram: Minimum: 4GB. Recommended : 8GB
c. Operating system:

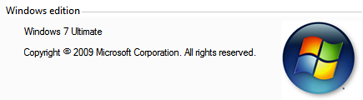

Windows 7 Ultimate / Professional 32-bit OS with Service pack 1: If the operating system is Windows 7 then check whether the service pack 1 is installed or not on the client system if not then copy the files from google drive and install.
Link: https://drive.google.com/drive/folders/1wvCMSAqq94e7TTTIw-dl-gU5LTcji9AS
For Windows 7 32 bit - Windows6.1-KB3102810-x86

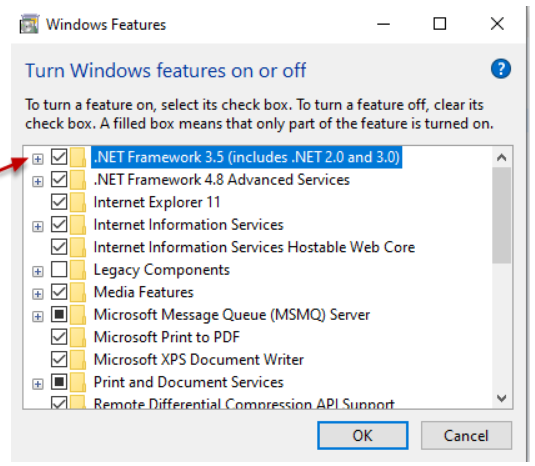

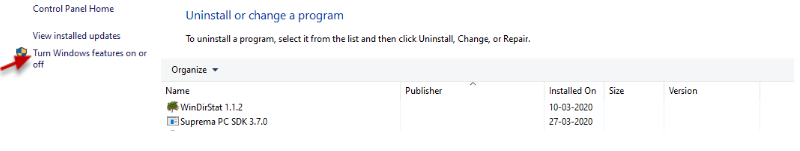

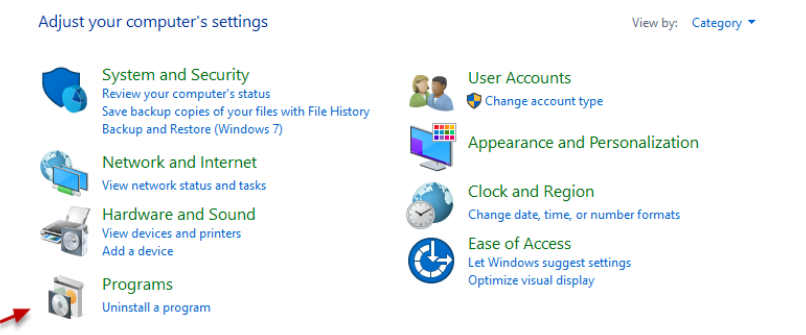

f. Check the .NET Framework 4.6.1 is installed or not on the client system if not then copy the files from google drive and install. To check the .NET Framework version in the Start Menu search for Control panel then click on Uninstall a Program & then Click on Turn Windows feature on or off.
2. Prerequisite on the site before installation:
a. The PVM machine should be mounted only on a firm structure.
b. The PVM Machine should be connected to the computer via USB cable & should be detected by the computer.
3. Installation steps:

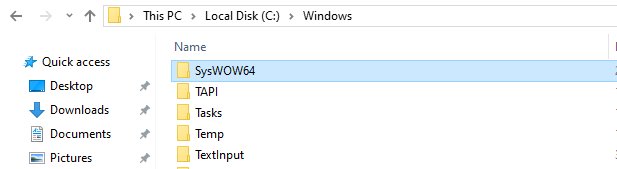

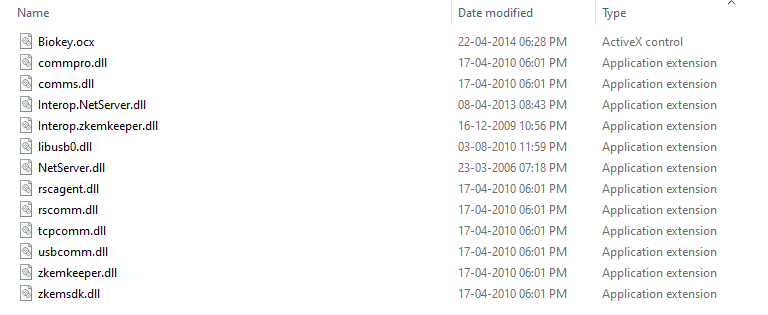

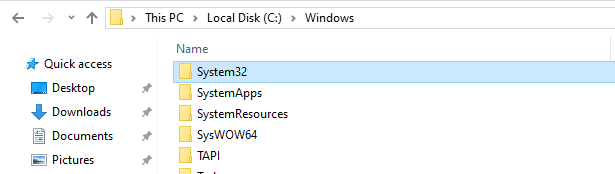

a. Copy DLL files from the DLL folder & paste it in the System32 folder for 32 bit OS System and paste it in the SYSWOW64 folder for 64 bit OS System.

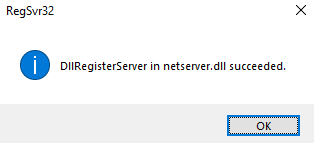

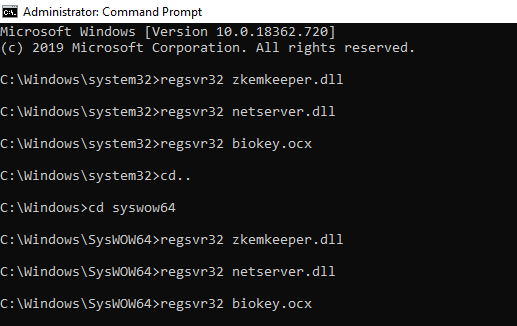

b. Register from CMD as Administrator (in 32-bit system & Syswow in 64 bit System) zkemkeeper.dll, netserver.dll & Biokey.ocx

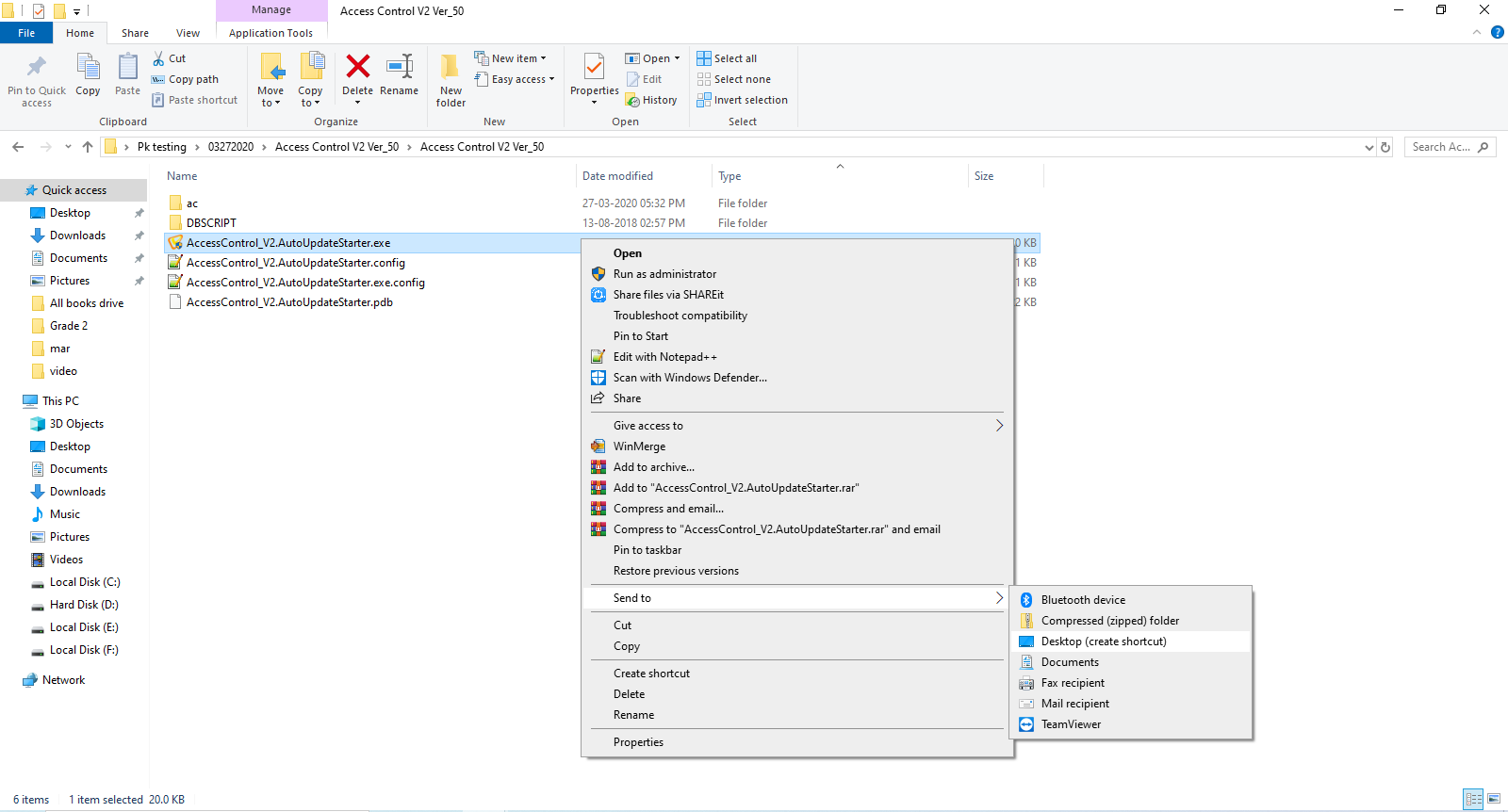

c. Copy Access Control application & paste it on the client computer.Make the shortcut of the application on the desktop.

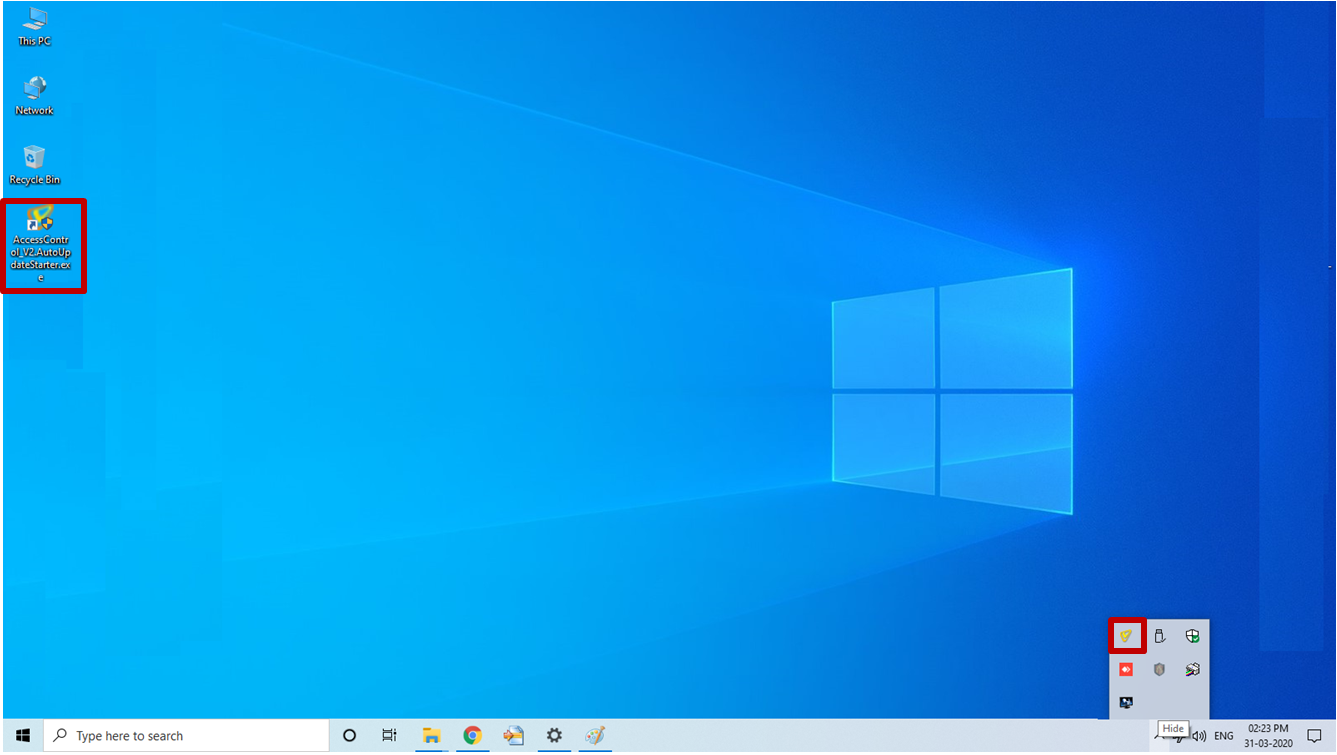

d. You can double click the left button of your mouse on the FitnessForce application shortcut to start the application.

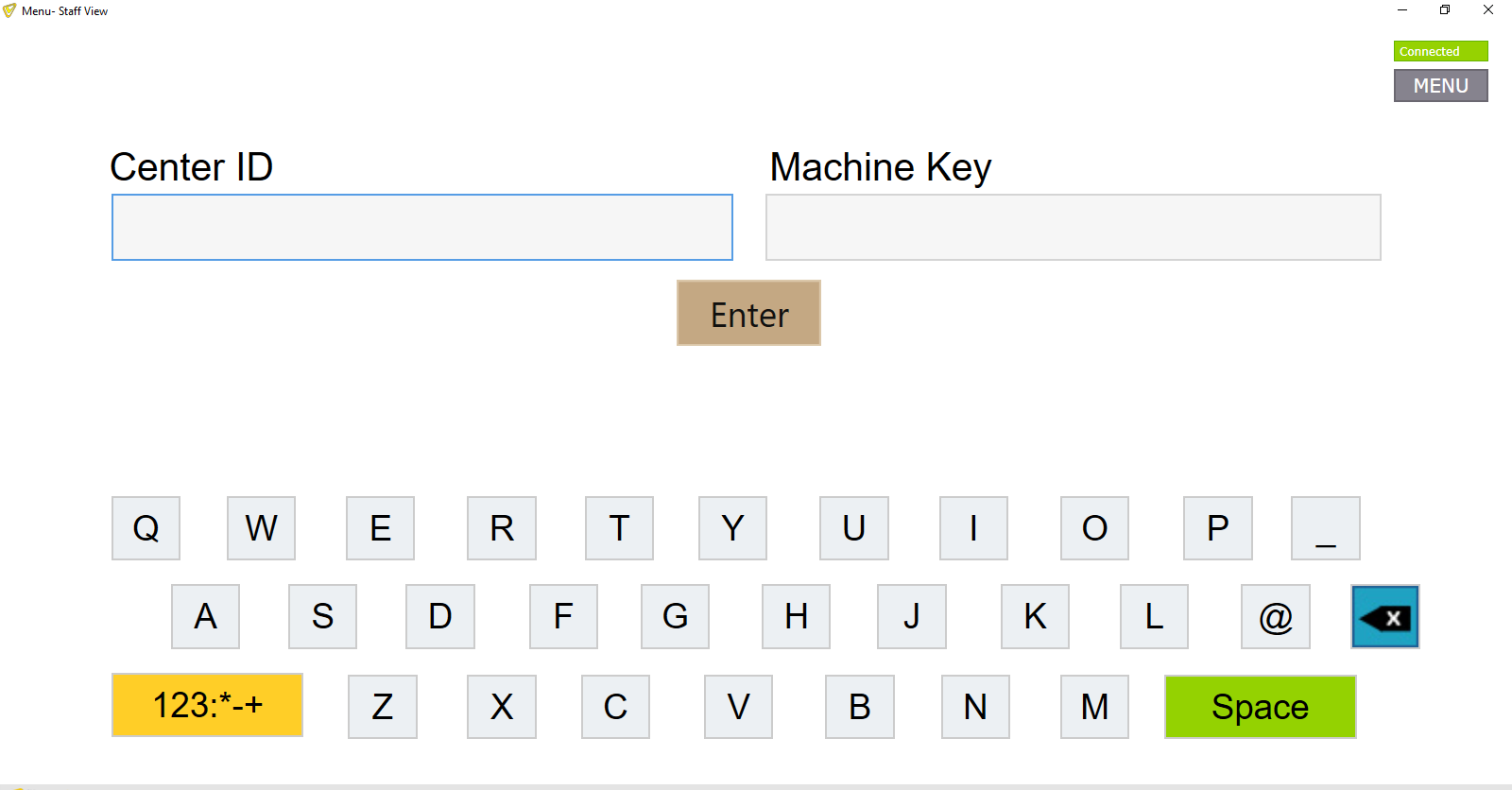

e. Enter the center ID & Machine key generated from FitnessForce software.
h. The FitnessForce access control application is installed successfully. You can start enrolling the staff & members.

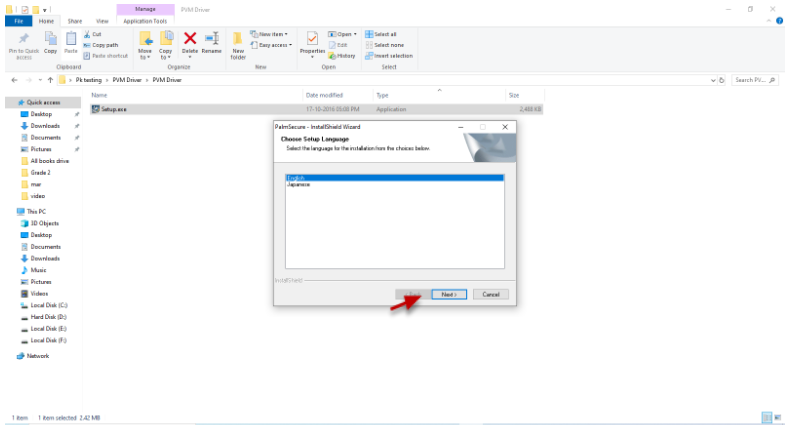

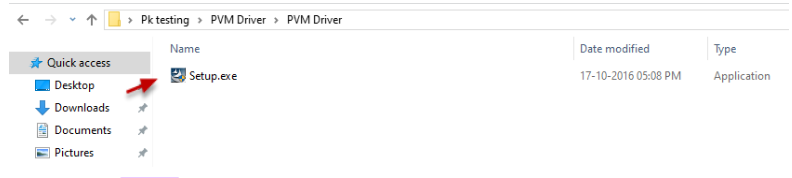

Note: For PVM device download, extract & install all the PVM Driver.rar from google drive.
https://drive.google.com/drive/folders/1wvCMSAqq94e7TTTIw-dl-gU5LTcji9AS
FAQ's
1. Where do I find all the files required for installation?
Ans: Please refer to this link to get all the Access Control related files.
https://drive.google.com/drive/folders/1wvCMSAqq94e7TTTIw-dl-gU5LTcji9AS
2. How do I make Machine Key?
Ans: Refer to Machine key Generation to learn more.
